Trimble R8 Model 4 GPS GLONASS Galileo & BeiDou 450-470 MHz Base Or Rover Receiver

Trimble R8 Model 4 GPS GLONASS Galileo & Compass/BeiDou 450-470 MHz Base Or Rover w/ Options...
- CMR Inputs
- CMR Outputs
- RTCM Inputs
- RTCM Outputs
- Data Collector
- Binary Outputs
- Data Logging
- Bluetooth
- L2CS
- UHF Transmit
- Cellular
- L5
- Enable GLONASS
- Enable Webserver
- Login Required
- Enable Compass/BeiDou
- Enable Galileo
- Max Data Rate 20 Hz
- 450 - 470 MHz Radio P/N: 64235-66

$3,729.00

Availability: In stock

SKU

XPGPS92

Condition: Refurbished

Warranty: 90 Day Exchange

Shipping: USA & Worldwide

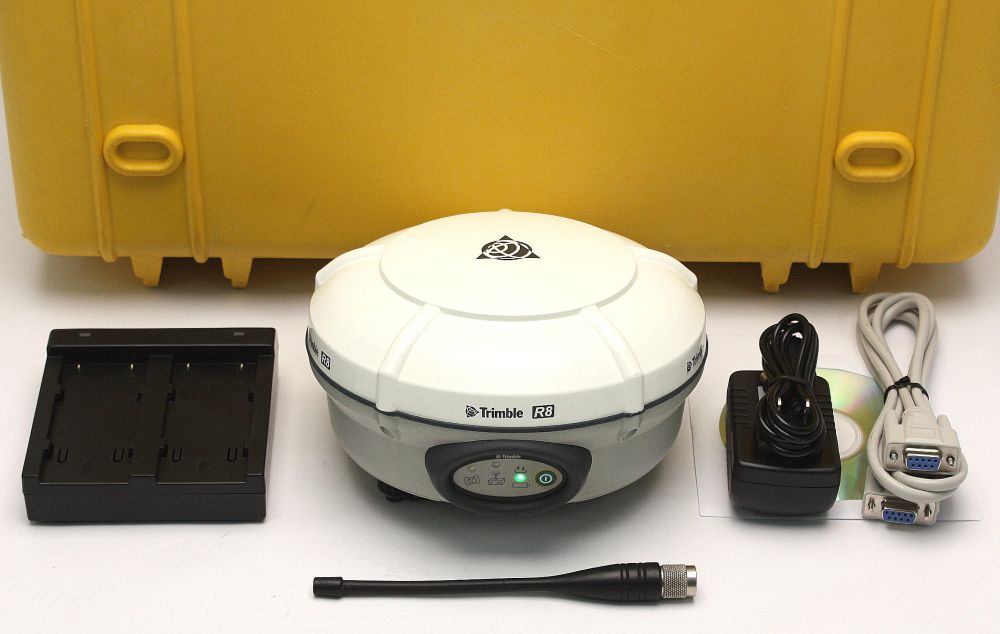

Included

* Trimble R8 Model 4 GNSS Receiver P/N: 83745-66 w/ Options... [ID- X2390-L/T*]
         - CMR Inputs
         - CMR Outputs
         - RTCM Inputs
         - RTCM Outputs
         - Data Collector
         - Binary Outputs
         - Data Logging
         - Bluetooth
         - L2CS
         - UHF Transmit
         - Cellular
         - L5
         - Enable GLONASS
         - Enable Webserver
         - Login Required
         - Enable Compass/BeiDou
         - Enable Galileo
         - Max Data Rate 20 Hz
         - 450 - 470 MHz Radio P/N: 64235-66
* Li-ION Battery Charger w/ AC Adapter
* Antenna
* Battery Pack
* RS232 PC Interface Cable
* User Manual On Cd-ROM
* Hard Carrying Case

Request a Quote for

Have questions or doubts? Submit the following request and expect our detailed quote within 24 hours!

We are commited to win your business!

Name *

E-mail address*

Phone Number

Country

Comment

Description

Trimble R8 Model 4 GNSS Receiver
The receiver incorporates a GNSS antenna, receiver, internal radio with a transmit option or an internal GSM module, and a battery in a rugged light-weight unit that is ideally suited as an all-onthe-pole RTK rover. Three LEDs allow you to monitor the satellite tracking, radio reception, data logging status, and power. Bluetooth wirelesstechnology provides cable-free communications between receiver and controller.

The circuitry in the Trimble R8 Model 4 GNSS receiver provides up to 440 channels for satellite tracking, and supports logging raw GNSS observables to the internal receiver memory or to a handheld controller for postprocessed applications.

The receiver is available as a standalone rover, base station, or as part of the GNSS Total Station® system, offering maximum versatility in the system configuration to meet your specific requirements.

The receivers provide the following features:

Future-proof Trimble 360 technology (Trimble R8 Model 4), which includes advanced Trimble Maxwell 6 Custom Survey GNSS chips with 440 channels and allows the receiver to track the following:

GPS: L1 C/A, L1C, L2C, L2E, L5
GLONASS: L1 C/A, L1P, L2 C/A, L2P, L3
Galileo: E1, E5A, E5B
BeiDou (COMPASS): B1, B2
SBAS: QZSS, WAAS, EGNOS, GAGAS

Centimeter-accuracy, real-time positioning with RTK/OTF data, up to 20 Hz position updates (R8 Model 4) or up to 10 Hz (R6 Model 4 and R4 Model 3)
Submeter-accuracy, real-time positioning using pseudorange corrections
Automatic OTF (on-the-fly) initialization while moving
Single Lithium-ion rechargeable battery
Cable-free Bluetooth communications with Trimble controllers
Two RS-232 serial ports for:

Trimble Format (CMR, CMR+™ and CMRx) input and output
RTCM SC-104 input and output (RTCM 2.1, 2.3, 3.0, 3.1)
23 NMEA outputs
GSOF, RT17, and RT27 outputs
Supports BINEX and smoothed carrier

One TNC radio antenna connector
Internal memory for data storage

Specifications:

Feature	Specification
Size	19.0 cm (7.5") wide x 10.4 cm (4.1") deep including connectors
Weight: with internal battery, radio, and standard antenna	1.52 kg (3.35 lbs)
Operating times on internal 2.6 Ah battery (varies with temperature)	450 MHZ receive only - 5 hours 450 MHz receive/transmit: 2.5 hours (varies with wireless data rate) GSM: 4.7 hours
Power input	11–28 V DC with over-voltage protection on port 1 (7-pin lemo)
Operating temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Storage temperature	–40 °C to +75 °C (–40 °F to +167 °F)
Humidity	100% condensing, unit fully sealed
Casing	Water/dustproof IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28 ft)
Positioning specifications
Feature	Specification
Positioning performance
Code differential GNSS positioning	Horizontal: 0.25 m + 1ppm RMS Vertical: 0.50 m + 1ppm RMS SBAS differential positioning accuracy: typically <5 m 3DRMS
Static GNSS surveying
High-precision static
Horizontal	3 mm + 0.1 ppm RMS
Vertical	3.5 mm + 0.4 ppm RMS
Static and FastStatic
Horizontal	3 mm + 0.5 ppm RMS
Vertical	5 mm + 0.5 ppm RMS
Kinematic surveying
Postprocessed Kinematic (PPK) GNSS surveying
Horizontal	8 mm + 1 ppm RMS
Vertical	15 mm + 1 ppm RMS
Real-Time Kinematic Surveying
Horizontal	8 mm + 1 ppm RMS
Vertical	15 mm + 1 ppm RMS
Network RTK
Horizontal	8 mm + 0.5 ppm RMS
Vertical	15 mm + 0.5 ppm RMS
Initialization time	typically < 8 seconds
Initialization reliability	typically > 99.9%
Technical specifications
Tracking:	Trimble R8 Model 4 GNSS receiver Advanced Trimble Maxwell 6 Custom Survey GNSS chips with 440 channels. Satellites simultaneously tracked: GPS: L1 C/A, L1C, L2C, L2E, L5 GLONASS: L1 C/A, L1P, L2 C/A, L2P, L3 Galileo: E1, E5A, E5B BeiDou (COMPASS): B1, B2 SBAS: QZSS, WAAS, EGNOS, GAGAN
Signal processing	Advanced Trimble Maxwell 6 Custom Survey GNSS chip Very low-noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth Multipath suppression
Start-up	Cold start: < 60 seconds from power on Warm start: < 30 seconds with recent ephemeris
Initialization	Automatic while moving or static
Initialization time	Typically < 8 seconds
Initialization reliability	Typically >99.9%
Communications	Two RS-232 serial ports (Port 1, Port 2) Baud Rates up to 115,200 bps RTS/CTS flow control negotiation supported on port 2 Bluetooth communications through Trimble controller with Bluetooth support
Configuration	Through user-definable application files or GPS Configurator
Output formats	NMEA-0183: AVR; BPQ; DP; DTM; GBS; GGA; GGK; GLL; GNS; GRS; GSA; GST; GSV; HDT; LLQ; PJK; PJT; RMC, ROT; VGK; VHD; VTG; ZDA GSOF (Trimble Binary Streamed Output) RT17 and RT27 outputs, BINEX and smoothed carrier

More Information

More Information
Condition	Refurbished
Warranty	90 Day Exchange
Manufacturer	Trimble
Stock ID:	X2390-L/T*
