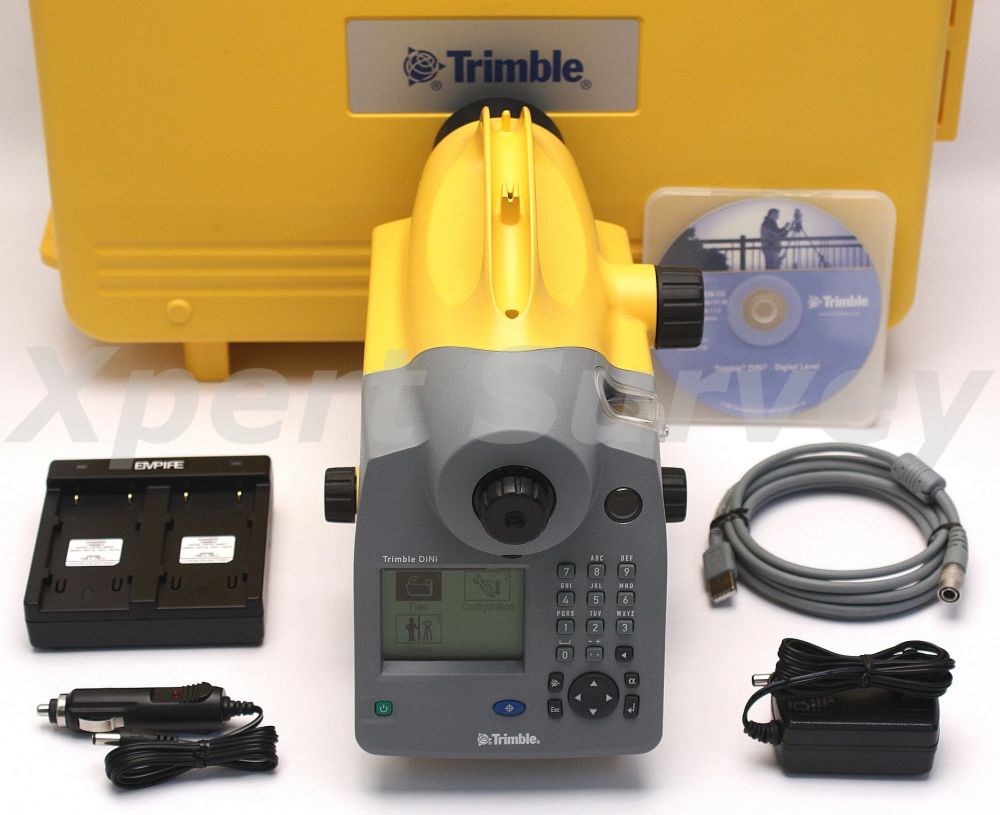

Trimble DiNi 0.7 Automatic Digital Height Level 0.7 mm Accuracy

* Trimble DiNi 0.7 Automatic Digital Level [ID- X2919-L/T*]
* Li-ion Battery Charger
* USB Power Cabe P/N#: 73840019
* DC Car Charger
* Battery Pack
* AC Adapter/Charger
* User Manual On CD-ROM
* Hard Carrying Case

Trimble DiNi Digital Level


The Trimble® DiNi® Digital Level is a digital height measurement sensor from Trimble’s Integrated Surveying™ portfolio of products. The Trimble DiNi is a field-proven tool designed for any job site where fast and accurate height determination is required. Use the Trimble DiNi for applications such as precise leveling of flat and sloping surfaces, establishing the vertical component of grade and ground profiles, subsidence monitoring, and establishing the vertical component of control networks.


UNEQUALLED FOR PERFORMANCE IN THE FIELD

The Trimble DiNi is designed to perform optimally every day, whatever your surveying job. It is built rugged—with a dust- and waterproof rating of IP55—to take the tough conditions of the job site in its stride. A backlight in the screen and a light in the circular bubble keep you productive even when daylight gets low.

The DiNi will operate for three days without requiring a battery change, then when it does just recharge it as you would your Trimble GNSS system battery…the batteries are the same to ensure convenience and productivity.

When a job is complete, easily transfer data from the instrument to a computer by using a USB storage device; You don’t have to carry your instrument in to the office.


EASY TO LEARN, EASY TO USE

The Trimble DiNi Digital Level demands the industry’s smallest measurement field—just 30 cm of code rod. So you can measure greater change in height between the level and the rod in one setup, and save time. Additionally, the small measurement area:

► reduces the number of stations needed by up to 20% because the Trimble DiNi is less impacted by a rod hidden by vegetation or hilly terrain.
► makes leveling in low light conditions, for example, in tunnels, easier because only a very small part of the staff needs to be illuminated.
► ensures greater accuracy through less influence of refraction near the ground.

The large graphical display of the Trimble DiNi is also unique, and is complemented by the latest Trimble keyboard for easy operation. Crew members used to operating other Trimble systems will easily adapt to the Trimble DiNi.


TRIMBLE QUALITY AND ACCURACY FOR MEASURING WITH CONFIDENCE

The Trimble DiNi Digital Level is designed to support the rest of Trimble’s Integrated Surveying portfolio. The Trimble DiNi interface is based on Trimble’s other advanced and field-proven controllers for easy adoption of the instrument by your crews. Proven Optics by Carl Zeiss ensure the Trimble DiNi offers the highest precision and best resolution.

Measure with confidence, knowing that with the Trimble DiNi Digital Level, your crew will obtain the best quality results with the highest level of productivity


Key Features:
► Determine accurate height information via a quick and easy key press
► Eliminate errors and reduce rework with digital readings
► Enjoy effortless data transfer between instrument and office
► Measure to a measurement field of just 30 cm
► Level 60% faster than with conventional automatic leveling

Trimble DiNi 0.7mm Performance Specifications
Accuracy	DIN 18723, standard deviation height measuring per 1 km of double leveling
Electronic measurement:
Invar precision bar code staff	0.7 mm
Standard bar code staff	1.3 mm
Visual measurement	2.0 mm
Distance measurement	with a 20 m sighting distance
Invar precision bar code staff	25 mm
Standard bar code staff	30 mm
Visual measurement	0.3 m
Range:
Electronic measurement	1.5 m–100 m
Visual measurement	from 1.3 m
Electronic measurement:
Resolution height measurement	0.1 mm
Resolution distance measurement	10 mm
Measurement time	2 s
Horizontal Circle:
Type of graduation:	400 grads and 360 deg
Graduation interva	1 grad and 1 deg
Estimation to	0.1 grad and 0.1 deg
Measurement Programs:
Standard programs	Single measurement with and without stationing, stakeout, line leveling with intermediate sight & stakeout
Leveling methods	BF, BFFB, aBF, aBFFB
ENVIRONMENTAL:
Operating temperature	–20 °C to +50 °C
Dust- and waterproofing	IP55
GENERAL SPECIFICATION:
Telescope
Aperture	40 mm
Field of view at 100 m	2.2 m
Electronic measurement field	0.3 m
Magnification:
Trimble DiNi 0.7 mm per km	26 x
Compensator:
Inclination range	±15’
Setting accuracy
Trimble DiNi 0.7 mm per km.	±0.5”
Circular leve	8’/2 mm with Illumination
Display	Graphical, 240 x 160 pixels, monochrome with illumination
Keyboard	19-key alpha-numeric and 4-way arrow key for navigation
Recording:
Internal memory	up to 30 000 data lines
External memory	USB Flash Drive support
Data transfer	USB Interface for data transfer between DiNi and PC (means two way communication)
Real-time clock and temperature sensor:
Trimble DiNi 0.7 mm per km	N/A
