Topcon Sonic Tracker II 2 Set 9142

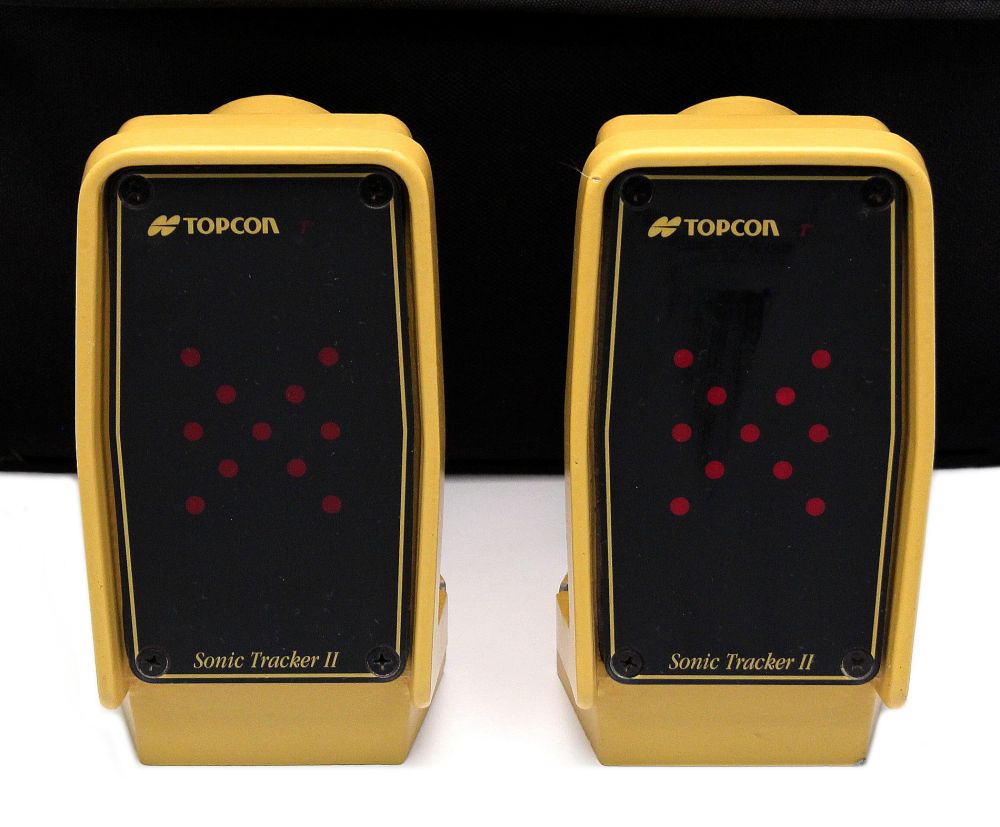

Topcon Sonic Tracker II

The Sonic Tracker II measures and controls the elevations of the cylinder. A transducer, located in the bottom of the Sonic Tracker II, generates sound pulses like a speaker and listens for returned echoes like a microphone. The Tracker measures the distance, controlling grade from a physical grade reference, such as a curb, string line, or existing road surface. A temperature bail compensates for rapid air temperature changes. In milling applications, always use a temperature bail.

The Sonic Tracker II attaches to the system through one quick- connect cable and attaches to the machine with a single bolt

Features & Benefits:
- High-resolution sonics for application versatility. Use references such as: elevated stringline, surface string, poured curbs, or existing surface
- Rugged cast housing with completely sealed internal electronics
- Easy to attach and position over reference
- Bright grade indication LED’s display continuous grade information
- Snap on temperature bail
- Field replaceable sonic transducers


Smoothtrac Sonic Averaging System (SAS)

The Smoothtrac® Sonic Averaging System (SAS) is an elevation control system that combines multiple Sonic Tracker II's together to calculate an average of the physical reference (Figure 1-6). Each tracker sends its distance measurement to the Control Box which then averages the measurements and sends a correction signal to the cylinder.

The Smoothtrac SAS replaces mechanical skis that drag on the ground. The Smoothtrac connects to the Control Box through the tracker cable.

Sonic Tracker II Specifications
Electrical
Resolution	.0025 ft
Supply Voltage	10-3- VDC
Immunity	Applicable regulation:EN50082-1:1992 ESD: +\- 8KV RF: 27 to 500MHz 3V/m
