Topcon GX-60 Dual GPS Motor Grader Control Box w/ 3D-MC
* Topcon GX-60 Control Box w/ Opts... [ID- X4156-L/T*]
- 3D-MC
- Motorgrader
- Bulldozer
- Excavator (dual gps)
- Elevating Scraper
- Single Tow Scraper
- Wheel Loader
- GPS (Topcon RTK)
- LPS
- Laser Zone (millimeter-GPS)
- Automatic Blade Control
- As-Built Mapping
- Dual mmGPS
- Avoidance Areas
- Light Truck
Condition: Used
Warranty: 90 Day Exchange
Shipping: USA & Worldwide
* Topcon GX-60 Control Box w/ Opts... [ID- X4156-L/T*]
- 3D-MC
- Motorgrader
- Bulldozer
- Excavator (dual gps)
- Elevating Scraper
- Single Tow Scraper
- Wheel Loader
- GPS (Topcon RTK)
- LPS
- Laser Zone (millimeter-GPS)
- Automatic Blade Control
- As-Built Mapping
- Dual mmGPS
- Avoidance Areas
- Light Truck
* Factory Serviced

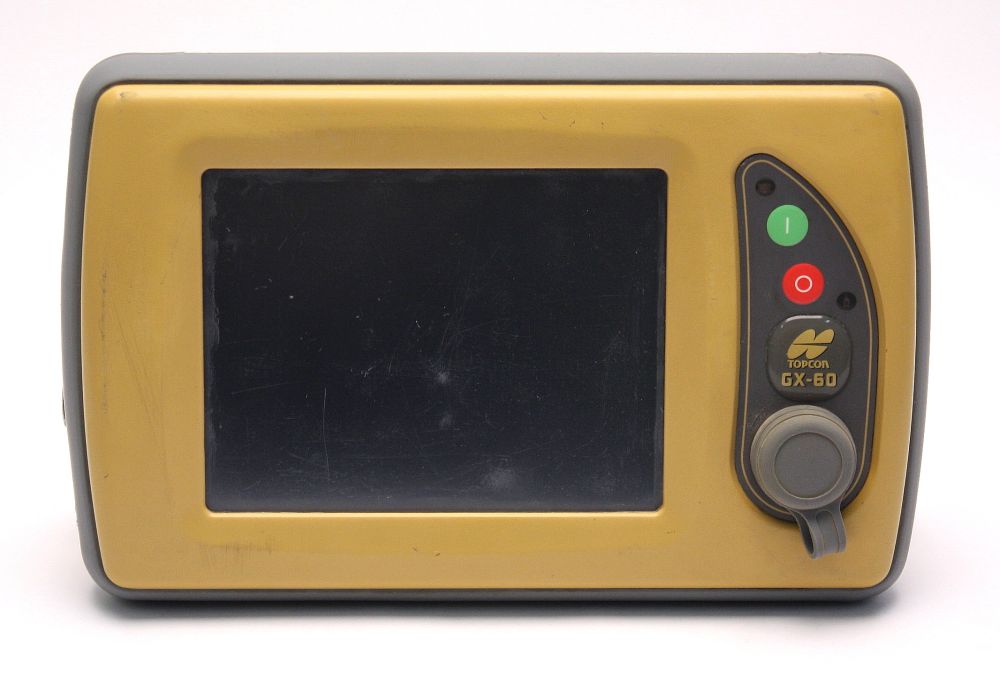

Topcon GX-60 9169 Control Box
The GX-60 graphical computer display was designed for rugged machine environments. Light and compact with a full-color LCD touch sensitive screen, Topcon's GX-60 is a fully functioning Windows computer that provides the operator with real-time grade information and control. The GX-50 is constructed of a strong cast housing and sealed internals, and features USB, Ethernet, CAN and RS-232 ports.
Features:
* Large 6 1/4" Diag. sunlight viewable color LCD with touch screen
* Adjustable side or rear RAM mounting options
* Flash download capability (application code revisions in the field)
* Easy access USB port for saving and downloading job files
* Internal battery backup to prevent data loss during interruptions
* Ambient Light Sensor for sharp display contrast
| Specifications | |
| Electrical | |
| Supply Voltage | 10-30VDC |
| Supply Current | 3A Typical operating current - Maximum at 10VDC input power, no peripheral equiptment 8A Maximum operating current |
| Switched Output Power | 5A Sensor/Conditioned output power |
| Ports | USB (2) Ethernet - One port only routed to two connectors RS-485 RS-232 CAN(2) Digital inputs (2) |
| Physical | |
| Display Panel | 640x480 Color VGA, enhanced brightness with analog touchscreen |
| Housing | Cast aluminum |
| Audio | 1ea environmentally sealed speaker w/ 1.5 watt amp |
| Switches | 2 ea momentary pushbutton (power on / off) |
| Connectors | 2 ea 19 socket MIL-C-5015 cylindrical connectors Gold plated contacts, conductive anticorrosive plated housing |
| Cooling | 1ea internal processor fan 1ea external housing fan |
| Weight | 6lbs. |
| Environment | |
| Operating Temperature | -20°C to +60°C |
| Humidity | Mil Std 810D, method 506 |
| Shock Rating | 50G 11ms 1/2 sine wave each axis |
| Vibration Rating | 10-400Hz sweep 5G, 1 oct/min 10-400Hz random 5G, 15 min each axis |
| Salt Fog Test | 48 Hours (ASTM B117-97) |
| Condition | Used |
|---|---|
| Warranty | 90 Day Exchange |
| Manufacturer | Topcon |
| Stock ID: | X4156-L/T* |
